Cold Cathode UV Lamp(Straight Shaped)

发布于：22-12-09   隶属于：Quartz Cold Cathode UV Lamp

Figure and specification of Quartz Cold Cathode UV Lamp

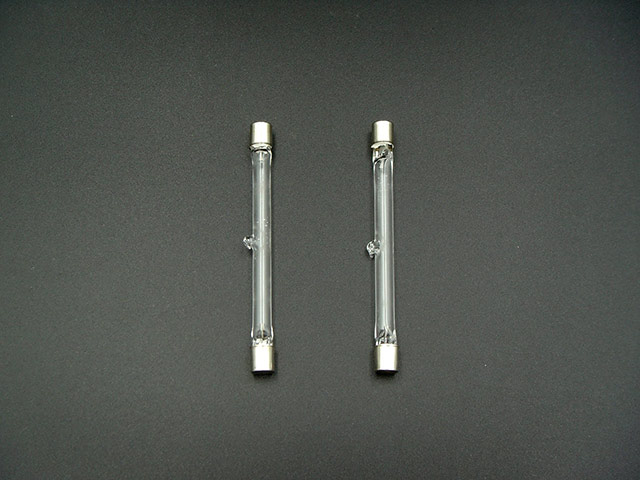

Straight-Shaped（Fig1）

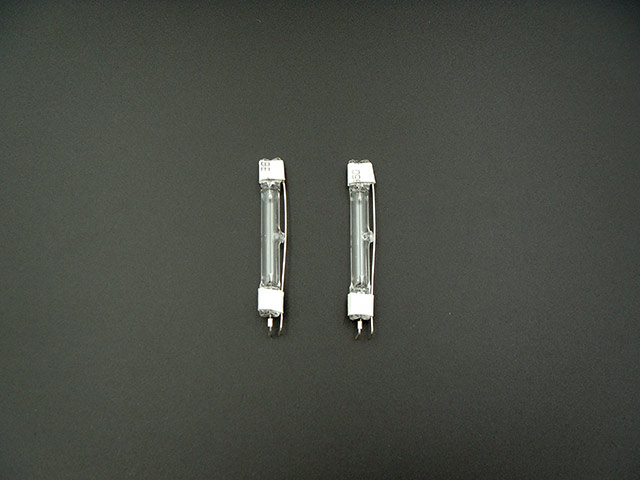

Straight-Shaped（Fig2）



Straight-Shaped（Fig3）



Specification of Quartz Cold Cathode UV Lamp

 SpecificationBulb dia(mm)Overall length(mm)Tube Voltage(V)Tube Curtent(mA)Power(W)

Strength of the Ultraviolet light
(μW/CM2)

Life(h)Note
 Straight-Shapedφ 542-500230-9002-100.6-9>150010000Fig1、2、3
φ 642-500200-8003-100.7-8>200010000Fig1、2、3



* There are many kinds of ultraviolet lamps with uses.they can be provided in a complete set with other components and materials.As for lamp tubes, both straight tube & other shapes are available.Customers can choose at will.

Next: Cold Cathode UV Lamp(U-Shaped)
